The ST120E Rail Aerial Work Platform is an innovative solution for high-altitude operations, combining lightweight design, advanced technology, and proven reliability. Featuring a dual-purpose crankshaft specifically designed for rail applications, this vehicle offers exceptional stability and durability, essential for working at heights.
The compact and economical design of the ST120E Rail aligns with the "economy-oriented" approach, making it a viable alternative to traditional engineering vehicles in European regions. This aerial work platform is primarily used for plant contact network maintenance and lighting repairs, providing a versatile and efficient tool for various maintenance tasks.
Furthermore, the ST120E Rail can be easily transported to the mainline via trailer if needed, ensuring easy, efficient, and cost-effective operations. Whether you're working on railways, power lines, or any other elevated structures, the ST120E Rail Aerial Work Platform is the perfect choice for all your high-altitude needs, delivering safe, reliable, and efficient performance.
Heavy-duty design ensures safety, strength, and durability.
Lightweight machine with a service life of over 20 years.
Low ground pressure with manual emergency lowering device.
Tilt control protection
Rotate the battery or engine tray.
Simple maintenance
Lightweight
Total weight is only 3000kg.
Optional off-road tires
Ideal for outdoor work on muddy roads.
Optional non-marking tyres for indoor use.
| TECHNICAL SPECIFICATIONS ST120 E Rail 24VDC (Standard) | |

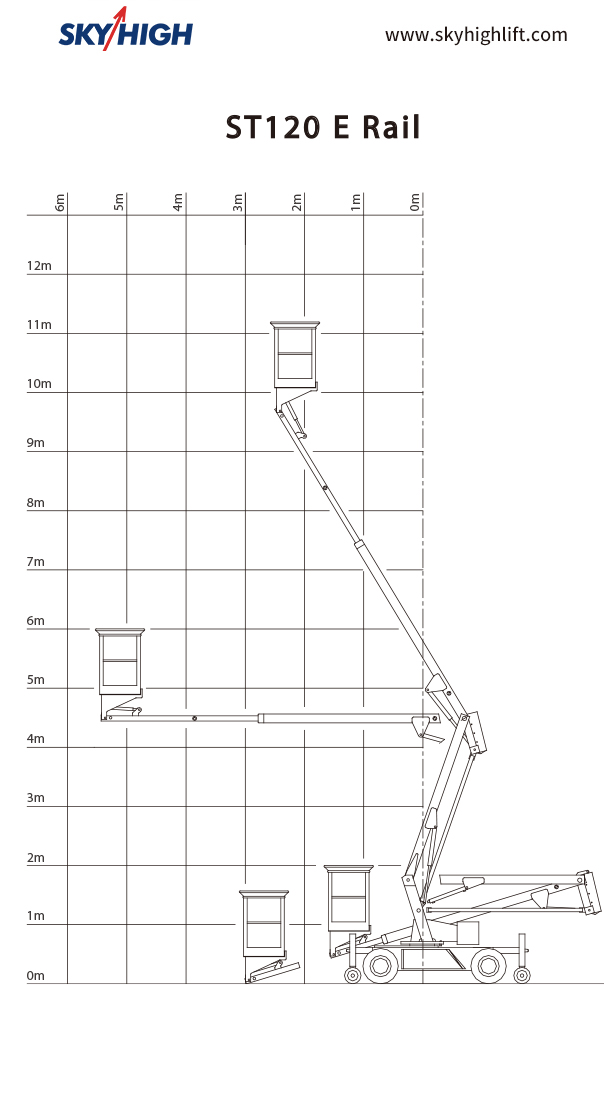

| Max. working height : | 12.00 m |
| Max. platform height : | 10.00 m |
| Max. horizontal extension : | 6.00 m |
| Max. permissible inclination : | 4.5°/7°（on rails) |
| Max track height difference: | 170 mm |
| Max. gradeability: | ± 30% |
| Max. driving speed : | ± 5 Km/h |
| Max. speed with raised arm | ± 1 Km/h |
| Max platform capacity: | 215 kg (2 persons + 55 kg) |
| Transport dimensions (l × w × h): | 4.65 × 1.74 × 2.12 m |
| Platform dimensions : | 110 × 67 cm |
| Overall weight : | ± 3000 kg |
| Max. wind speed: | 12.5m/s |
| Max. horizontal force: | 400 N |
| Turntable rotation : | 420° |
| Batteries : | 2× Discover AGM 240 Ah/k5 - 24V |
| IP 66 battery charger : | Delta-q 650 Watt - 24V |
| Tyre size : | 23×8.5-12 |
| Tyre filling : | Isothane (Gel) |
| Rail guide wheel diameter : | 210 mm |
| Electric motor : | 24VDC - 4.5kW |
| Hydraulic oil : | Shell Tellus S4 ME 46 |
| ST120 E Rail 48VDC (Heavy Duty) | |
| Overall weight : | ± 3160 kg |
| Batteries : | 4× Discover AGM 240 Ah/k5 - 48V |
| IP 66 battery charger : | Delta-q 1200 Watt - 48V |
| Electric motor : | 48VDC - 5kW |
| Alu protection : | Underride + top plate |
| OPTIONS | |
| Tyre size : | 23×8.5-12 Non Marking |
| Range extender: | Diesel Generator EPS2500DE Silent + 2× Delta-Q IC900 (1800W-48V) |
| 230 VAC in cage: | 10A - IP44 met IB isoltie bewaking |
| Rotary head shield | |
| Bumpers in rubber on cage (4pcs) | |
| Lithium batteries (LiFePO4) : | 240A (8 × 48VDC 30A) |
| Driving speed : | ± 6 km/h |
| Electric motor: | 48VAC - 17 kW |
| Bio hydraulic oil: | Shell Tellus S4 ME 46 |
| Side track monitoring | |
| LED lighting in cage: | |
| Stainless steel protection for cage against catenary | |
| Emergency fall provision in cage | |
| * Customer-specific option on request | |
