The rail dual-purpose crankshaft, light weight, advanced technology, mature and reliable quality, aerial stability, product performance in favor of durable, compact, economical, which product design concepts adhere to the "economy-oriented" in the European region has been a basic alternative to the operation of the engineering car. The dual-purpose crankshaft is mainly used for plant contact network maintenance, plant lighting maintenance, and, if necessary, can be used to If necessary, it can be pulled to the main line by trailer, making the operation more easy, efficient, and cost-effective.
Heavy-duty design ensures safety, strength, and durability.
Lightweight machine with a service life of over 20 years.
Low ground pressure with manual emergency lowering device.
Tilt control protection
Rotate the battery or engine tray.
Simple maintenance
Lightweight
Total weight is only 2780kg.
Optional off-road tires
Ideal for outdoor work on muddy roads.
Optional non-marking tyres for indoor use.

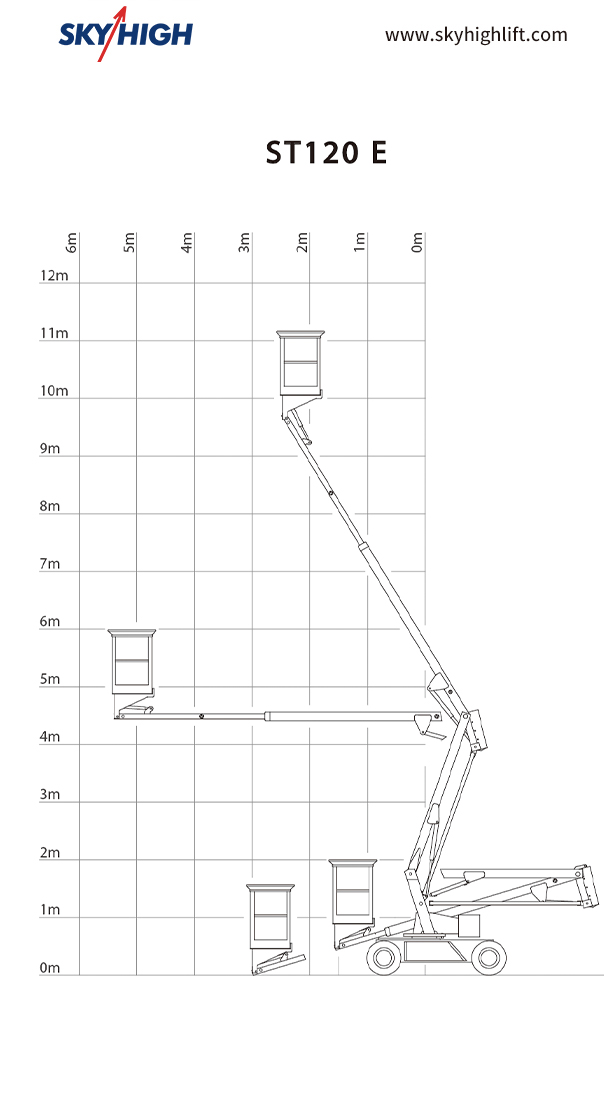

TECHNICAL SPECIFICATIONS ST120 E 24VDC (Standard) | |
Max. working height : | 12.00 m |
Max. platform height : | 10.00 m |
Max. horizontal extension : | 6.00 m |
Max. permissible inclination : | 4.5° |
Max. gradeability: | ± 30% |
Max. driving speed : | ± 5 Km/h |
Max. platform capacity: | 215 kg (2 persons + 55 kg) |
Transport dimensions (l × w × h): | 4.65 × 1.50 × 2.30 m |
Platform dimensions : | 110 × 67 cm |
Overall weight : | 2780 kg |
Turntable rotation : | 420° |
Batteries : | 2× Discover AGM 240 Ah/k5 - 24V |
IP 66 battery charger : | Delta-q 650 Watt - 24V |
Tyre size : | 23×8.5-12 |
Tyre filling : | Isothane (Gel) |
Electric motor : | 24VDC - 4.5kW |
Hydraulic oil : | Shell Tellus S4 ME 46 |
ST120 E 48VDC (Heavy Duty) | |
Overall weight : | 2940 kg |
Batteries : | 4× Discover AGM 240 Ah/k5 - 48V |
IP 66 battery charger : | Delta-q 1200 Watt - 48V |
Max. gradeability: | ± 30% |
Electric motor : | 48VDC - 5kW |
Alu protection : | Underride + top plate |
OPTIONS | |
Tyre size : | 23×8.5-12 Non Marking |
Range extender: | Diesel Generator EPS2500DE Silent + 2× Delta-Q IC900 (1800W-48V) |
230 VAC in cage: | 10A - IP44 with IB isolation monitoring |
Tree pruning version (see specification list ) | |
Rotary head shield | |
Bumpers in rubber on cage (4pcs) | |
Lithium batteries (LiFePO4) : | 240A (8 × 48VDC 30A) |
Driving speed : | ± 6 km/s |
Electric motor: | 48VAC - 17 kW |
Bio hydraulic oil: | Shell Tellus S4 ME 46 |
* Customer-specific option on request |
