The ST130E Rail Aerial Work Platform is a leading solution for high-altitude rail tasks, combining lightness, advanced technology, and reliability. Tailored for rail use, it ensures stability and durability. Compact and economical, it's perfect for plant maintenance, lighting fixes, and more. Easy transportation via trailer simplifies logistics. Secure, dependable, and efficient, the ST130E is your trusted partner for all elevated work.
Heavy-duty design ensures safety, strength, and durability.
Lightweight machine with a service life of over 20 years.
Low ground pressure with manual emergency lowering device.
Tilt control protection
Rotate the battery or engine tray.
Simple maintenance
Lightweight
Total weight is only 3030kg.
Optional off-road tires
Ideal for outdoor work on muddy roads.
Optional non-marking tyres for indoor use.
| TECHNICAL SPECIFICATIONS ST130 E Rail 24VDC (Standard) | |

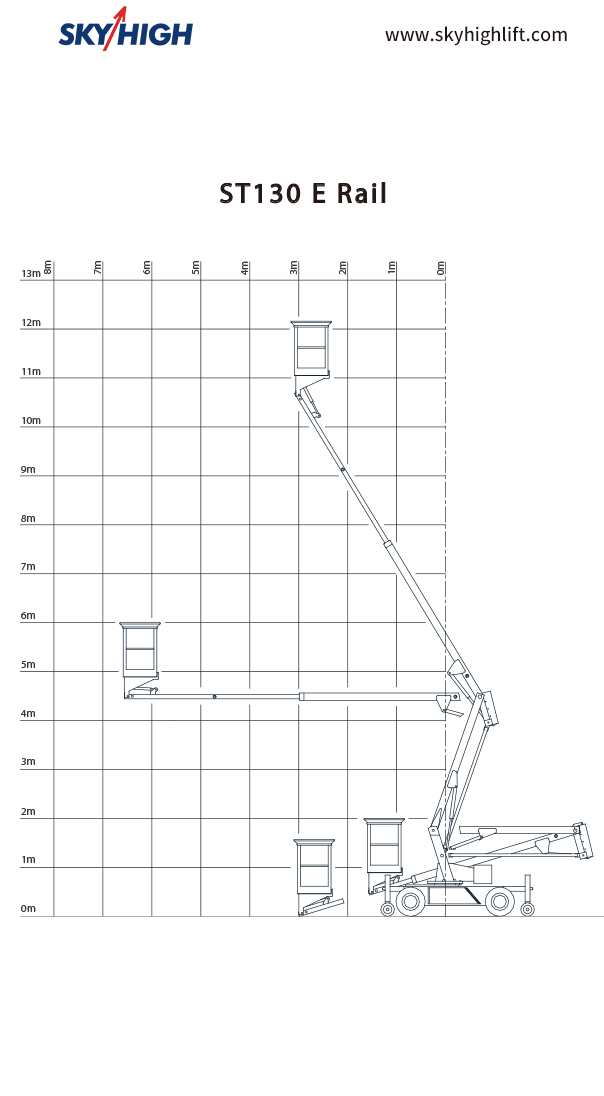

| Max. working height : | 13.00 m |
| Max. platform height : | 11.00 m |
| Max. horizontal extension : | 6.70 m |
| Max. permissible inclination : | 4.5°/7°（on rails) |
| Max track height difference: | 170 mm |
| Max. gradeability: | ± 30% |
| Max. driving speed : | ± 5 Km/h |
| Max. speed with raised arm | ± 1 Km/h |
| Max platform capacity: | 135 kg (1 person + 55 kg) |
| Transport dimensions (l × w × h): | 4.95 × 1.74 × 2.12 m |
| Platform dimensions : | 85 × 67 cm |
| Overall weight : | ± 3030 kg |
| Max. wind speed: | 12.5m/s |
| Max. horizontal force: | 400 N |
| Turntable rotation : | 420° |
| Batteries : | 2× Discover AGM 240 Ah/k5 - 24V |
| IP 66 battery charger : | Delta-q 650 Watt - 24V |
| Tyre size : | 23×8.5-12 |
| Tyre filling : | Isothane (Gel) |
| Rail guide wheel diameter : | 210 mm |
| Electric motor : | 24VDC - 4.5kW |
| Hydraulic oil : | Shell Tellus S4 ME 46 |
| ST130 E Rail 48VDC (Heavy Duty) | |
| Overall weight : | ± 3190 kg |
| Batteries : | 4× Discover AGM 240 Ah/k5 - 48V |
| IP 66 battery charger : | Delta-q 1200 Watt - 48V |
| Electric motor : | 48VDC - 5kW |
| Alu protection : | Underride + top plate |
| * Customer-specific option on request | |
| OPTIONS | |
| Tyre size : | 23×8.5-12 Non Marking |
| Range extender: | Diesel Generator EPS2500DE Silent + 2× Delta-Q IC900 (1800W-48V) |
| 230 VAC in cage: | 10A - IP44 met IB isolation monitoring |
| Rotary head shield | |
| Bumpers in rubber on cage (4pcs) | |
| Lithium batteries (LiFePO4) : | 240A (8 × 48VDC 30A) |
| Driving speed : | ± 6 km/h |
| Electric motor: | 48VAC - 17 kW |
| Bio hydraulic oil: | Shell Tellus S4 ME 46 |
| Side track monitoring | |
| LED lighting in cage: | |
| Stainless steel protection for cage against catenary | |
| Emergency fall provision in cage | |
ST 130E Rail
