The ST130E Aerial Work Platform combines versatility, stability, and durability. With its lightweight, technologically advanced design, it offers reliable high-altitude performance. Ideal for plant maintenance tasks, it can be easily transported, ensuring efficient operations. The ST130E is a cost-effective and safe solution for all elevated work needs.
Heavy-duty design ensures safety, strength, and durability.
Lightweight machine with a service life of over 20 years.
Low ground pressure with manual emergency lowering device.
Tilt control protection
Rotate the battery or engine tray.
Simple maintenance
Lightweight
Total weight is only 2810kg.
Optional off-road tires
Ideal for outdoor work on muddy roads.
Optional non-marking tyres for indoor use.
TECHNICAL SPECIFICATIONS ST130 E 24VDC (Standard) | |

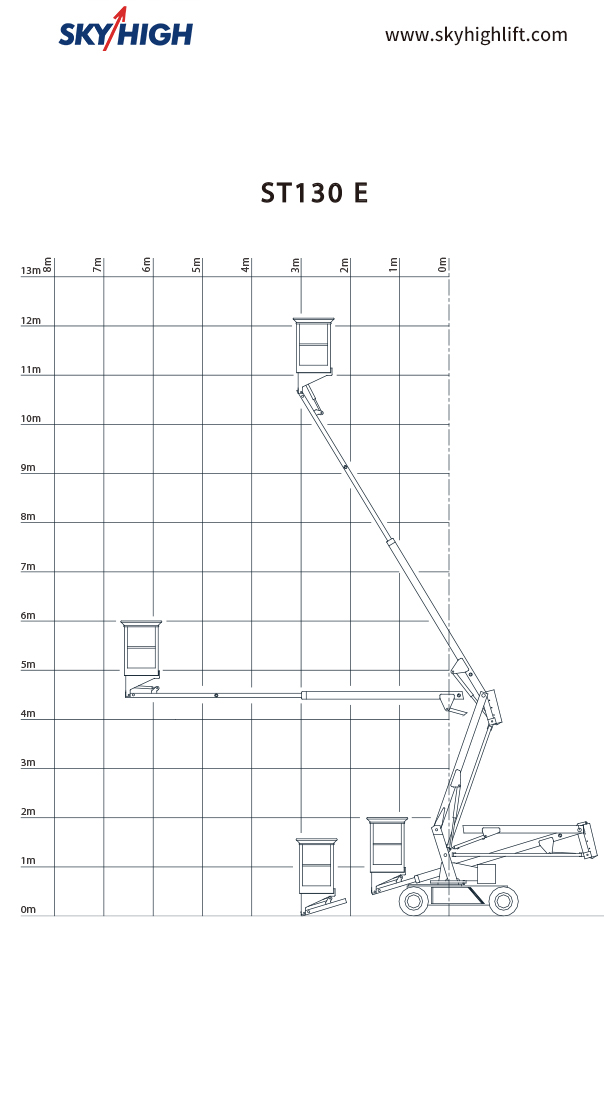

Max. working height : | 13.00 m |
Max. platform height : | 11.00 m |
Max. horizontal extension : | 6.70 m |
Max. permissible inclination : | 4.5° |
Max. gradeability: | ± 30% |
Max. driving speed : | ± 5 Km/h |
Max. platform capacity: | 135 kg (1 person + 55 kg) |
Transport dimensions (l × w × h): | 4.95 × 1.50 × 2.30 m |
Platform dimensions : | 85 × 67 cm |
Overall weight : | 2810 kg |
Turntable rotation : | 420° |
Batteries : | 2× Discover AGM 240 Ah/k5 - 24V |
IP 66 battery charger : | Delta-q 650 Watt - 24V |
Tyre size : | 23×8.5-12 |
Tyre filling : | Isothane (Gel) |
Electric motor : | 24VDC - 4.5kW |
Hydraulic oil : | Shell Tellus S4 ME 46 |
ST130 E 48VDC (Heavy Duty) | |
Overall weight : | 2970 kg |
Batteries : | 4× Discover AGM 240 Ah/k5 - 48V |
IP 66 battery charger : | Delta-q 1200 Watt - 48V |
Max. gradeability: | ± 30% |
Electric motor : | 48VDC - 5kW |
Alu protection : | Underride + top plate |
OPTIONS | |
Tyre size : | 23×8.5-12 Non Marking |
Range extender: | Diesel Generator EPS2500DE Silent + 2× Delta-Q IC900 (1800W-48V) |
230 VAC in cage: | 10A - IP44 with IB isolation monitoring |
Loadcell: Cage dimensions: |
≤ 12 m - 215 kg (2 person + 55 kg) ≥ 12 m - 135 kg (1 person + 55 kg) 110 × 67 cm |
Rotary head shield | |
Bumpers in rubber on cage (4pcs) | |
Lithium batteries (LiFePO4) : | 240A (8 × 48VDC 30A) |
Driving speed : | ± 6 km/h |
Electric motor: | 48VAC - 17 kW |
Bio hydraulic oil : | Shell Tellus S4 ME 46 |
* Customer-specific option on request |
