The HLS-240E13, part of our scissor lift truck series, stands out as a favoured and highly rented product due to its distinctive features: a spacious platform and impressive load capacity. Boasting a platform width of 1.2 metres and a load capacity of 750 kg. Additionally, it offers versatility with the option to be equipped with either traceless or off-road tires.
Controlbox with quick disconnect
Hourmeter
Charger (high frequency)
230V supply on platform
Driving at full height
Driving, proportional
Lifting, proportional
Differential lock
Scissors skirt
Drive alarm
Emergency descent
Indoors
Outdoors
Certified min. temperature -15ºC
| HLS-240E13 | |
| Max. working height : | 24.00 m |
| Max. platform height : | 22.00 m |
| Min. platform height : | 2.66 m |
| Platform dimensions (retracted) : | 4.50×1.20 m |
| Platform dimensions (extended) : | 7.00×1.20 m |
| Transport height : | 3.82 m |
| Transport height (handrail folded down) : | 3.10 m |
| Transport dimensions : | 4.80×1.30 m |
| Wheel base : | 3.45 m |
| Ground clearance : | 170 mm |
| Turning radius outside : | 3.50 m |
| Max. capacity main platform : | 750 kg (4 pers.+430 kg) |
| Max. capacity roll-out deck : | 750 kg (4 pers.+430 kg) |
| Lift-/lower time (max. load) : | 105/95 sec. |
| Drivig speed (high) : | 2.0 km/h |
| Drivig speed (slow) : | 0.5 km/h |
| Tyres : | 28×12-22 |
| Gradeability : | 25% |
| Batteries (traction acid) | 630 Ah/k5/48 V |
| Gross weight : | 13100 kg |

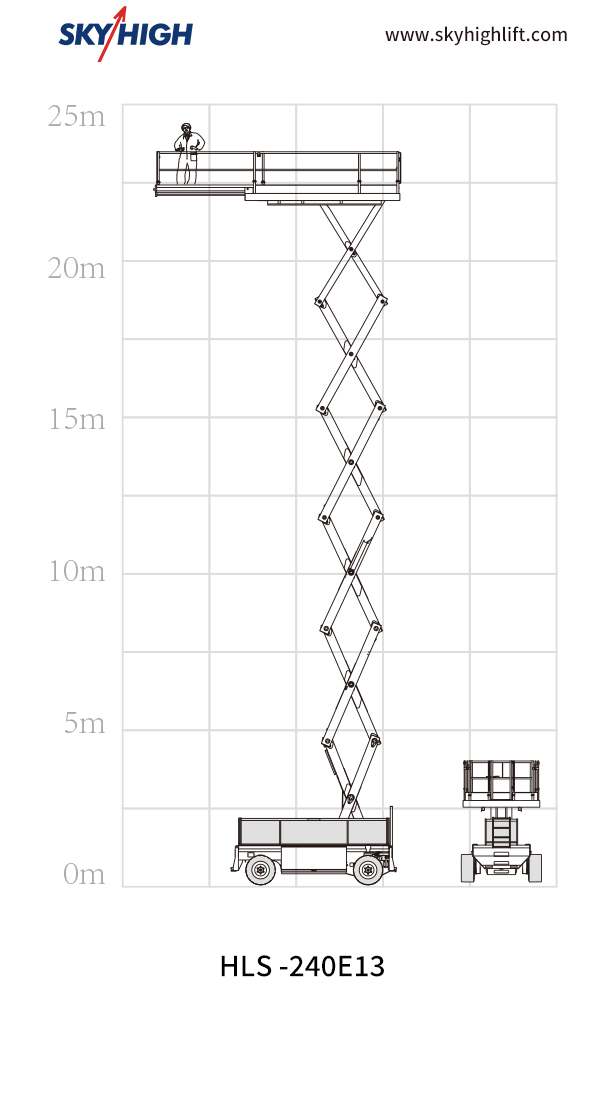

HLS-240E13
