The HLS-240E25, a member of our scissor lift truck range, is a sought-after product renowned for its generous platform space and remarkable lifting capacity. With a platform width spanning 2.3 metres and a load limit of 750 kilograms, this model is both robust and versatile. It also provides flexibility, allowing for the choice of either traceless or off-road tires to suit various operating conditions.
Controlbox with quick disconnect
Hourmeter
Charger (high frequency)
230V supply on platform
Driving at full height
Driving, proportional
Lifting, proportional
Differential lock
Lubrication system Easy Lube
Scissors skirt
Drive alarm
Emergency descent
Indoors
Outdoors
Certified min. temperature -15ºC
| HLS-240E25 | |
| Max. working height : | 24.00 m |
| Max. platform height : | 22.00 m |
| Min. platform height : | 2.63 m |
| Platform dimensions (retracted) : | 4.50×2.30 m |
| Platform dimensions (extended) : | 7.00×2.30 m |
| Transport height : | 3.79 m |
| Transport height (handrail folded down) : | 2.92 m |
| Transport dimensions : | 4.97×2.44 m |
| Wheel base : | 3.20 m |
| Ground clearance : | 280 mm |
| Turning radius outside : | 4.50 m |
| Max. capacity main platform : | 750 kg (4 pers.+430 kg) |
| Max. capacity roll-out deck : | 750 kg (4 pers.+430 kg) |
| Lift-/lower time (max. load) : | 105/95 sec. |
| Drivig speed (high) : | 2.0 km/h |
| Drivig speed (slow) : | 0.5 km/h |
| Tyres : | 36×14-20 |
| Gradeability : | 25% |
| Batteries (traction acid) | 630 Ah/k5/48 V |
| Gross weight : | 13500 kg |

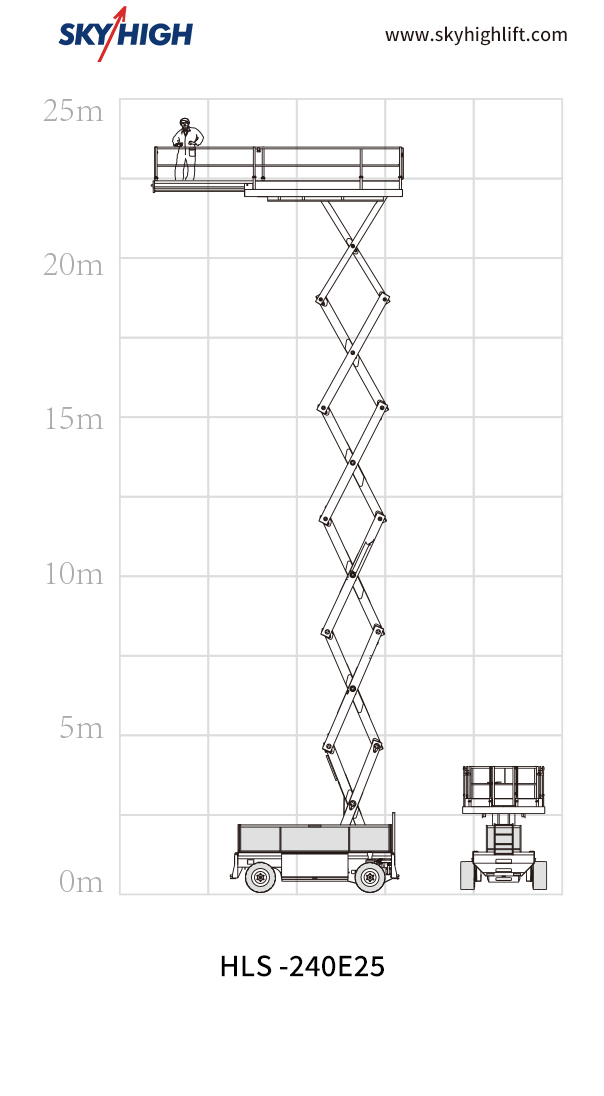

HLS-240E25
