HLS-280E13

PRODUCT DESCRIPTION

The large-height electric valve hall lift has the characteristics of super height and large load. The operating height of the HLS-280E13 valve hall lift is 28 meters, the bearing capacity is 750 kg, and the extension part also carries 750 kg It uses battery electric power as the power source. The width of the machine is only 1.2 meters. It is a very compact working platform. It is used in the valve hall of the converter station.

STANDARD FEATURES

Controlbox with quick disconnect
Hourmeter
230V supply on platform
Driving at full height
Driving, proportional
Lifting, proportional
Differential lock
Four wheel drive (4WD)
Four wheel steering (S)
Lubrication system Easy Lube
Scissors skirt
Drive alarm
Emergency descent
Indoors
Certified min. temperature -15ºC

DATASHEET

HLS-280E13
Max. working height : 28.00 m
Max. platform height  : 26.00 m
Min. platform height : 2.95 m
Platform dimensions (retracted) : 5.21×1.20 m
Platform dimensions (extended) : 7.11×1.20 m
Transport height  : 4.15 m
Transport height (handrail folded down)  : 3.21 m
Transport dimensions : 5.60×1.32 m
Wheel base : 4.19 m
Ground clearance : 175 mm
Turning radius outside : 3.45 m
Max. capacity main platform : 750 kg (2 pers.+590 kg)
Max. capacity roll-out deck : 750 kg (2 pers.+590 kg)
Lift-/lower time (max. load) : 156/106 sec.
Drivig speed (high) : 2.3 km/h
Drivig speed (slow) : 0.5 km/h
Tyres : 28×10×22
Gradeability : 25%
Batteries (traction acid) 800 Ah/k5/48 V
Gross weight : 18770 kg

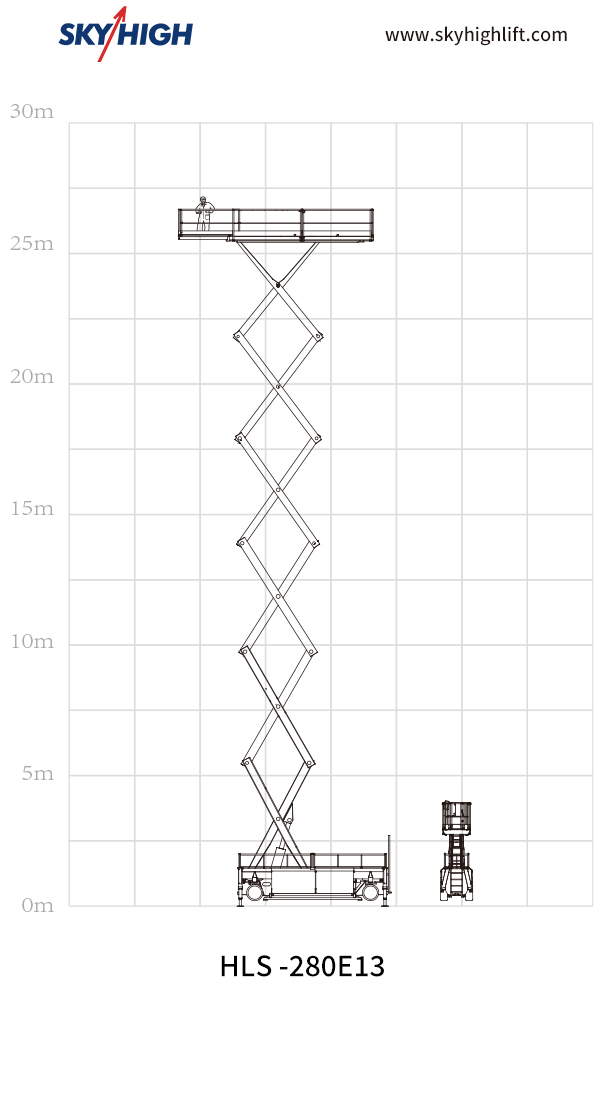

WORK DIAGRAM
