The HLS-190E20 electric scissor aerial vehicle produced by Skyhigh is a compact, small, flexible, safe and reliable scissor aerial vehicle. The main feature is "narrow", the width is only 2 meters, and the load capacity is 550 kg. Full-scale control technology, equipped with trace-free wear-resistant tires and large-capacity quiet batteries as power sources, is a scissor-type aerial vehicle suitable for indoor and flexible operation.
Controlbox with quick disconnect
Hourmeter
Charger (high frequency)
230V supply on platform
Driving at full height
Driving, proportional
Lifting, proportional
Differential lock
Descent safety
Flashing beacons
Drive alarm
Emergency descent
Indoors
Outdoors
Certified min. temperature -15ºC
| HLS-190E20 | |
| Max. working height : | 18.60 m |
| Max. platform height : | 16.60 m |
| Min. platform height : | 2.36 m |
| Platform dimensions (retracted) : | 4.00×1.85 m |
| Platform dimensions (extended) : | 6.00×1.85 m |
| Transport height : | 3.53 m |
| Transport height (handrail removed) : | 2.72 m |
| Transport height (handrail folded down) : | 2.76 m |
| Transport dimensions : | 4.50×2.0 m |
| Wheel base : | 3.05 m |
| Ground clearance : | 244 mm |
| Turning radius outside : | 4.00 m |
| Turning radius inside : | 0.00m |
| Max. capacity main platform : | 550 kg (4 pers.+390 kg) |
| Max. capacity roll-out deck : | 550 kg (4 pers.+390 kg) |
| Lift-/lower time (max. load) : | 62/53 sec. |
| Drivig speed (high) : | 3.6 km/h |
| Drivig speed (slow) : | 0.4 km/h |
| Tyres : | 33×12-20 |
| Gradeability : | 25% |
| Batteries (traction acid) | 420 Ah/k5/48 V |
| Gross weight : | 8660 kg |

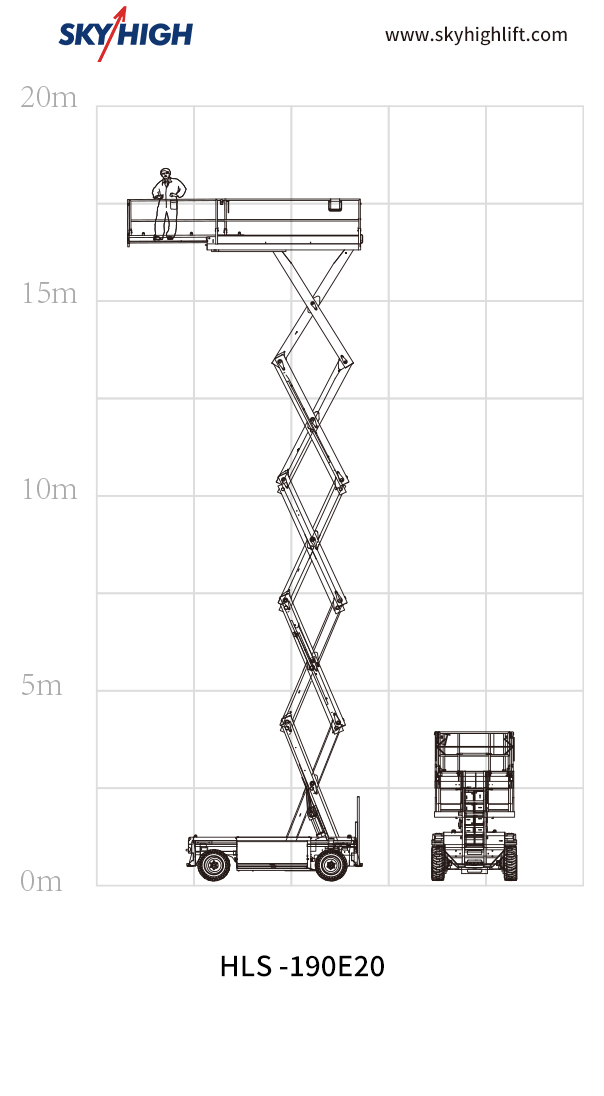

HLS-190E20
