The main features of the HLS-190E25 electric scissor-type aerial platform are: a large load capacity of 1,000 kg; a large platform with a width of 2.3 meters; and the use of environmentally friendly and quiet large-capacity batteries as the power source; equipped with Holland Holland patent The technical overload limit system ensures that when the platform is extended or retracted, any point on the platform can carry the same weight. HLS-190E25 is suitable for scissor-type aerial platforms for indoor or outdoor use.
Controlbox with quick disconnect
Hourmeter
Charger (high frequency)
230V supply on platform
Driving at full height
Driving, proportional
Lifting, proportional
Differential lock
Scissors skirt
Drive alarm
Emergency descent
Indoors
Outdoors
Certified min. temperature -15ºC

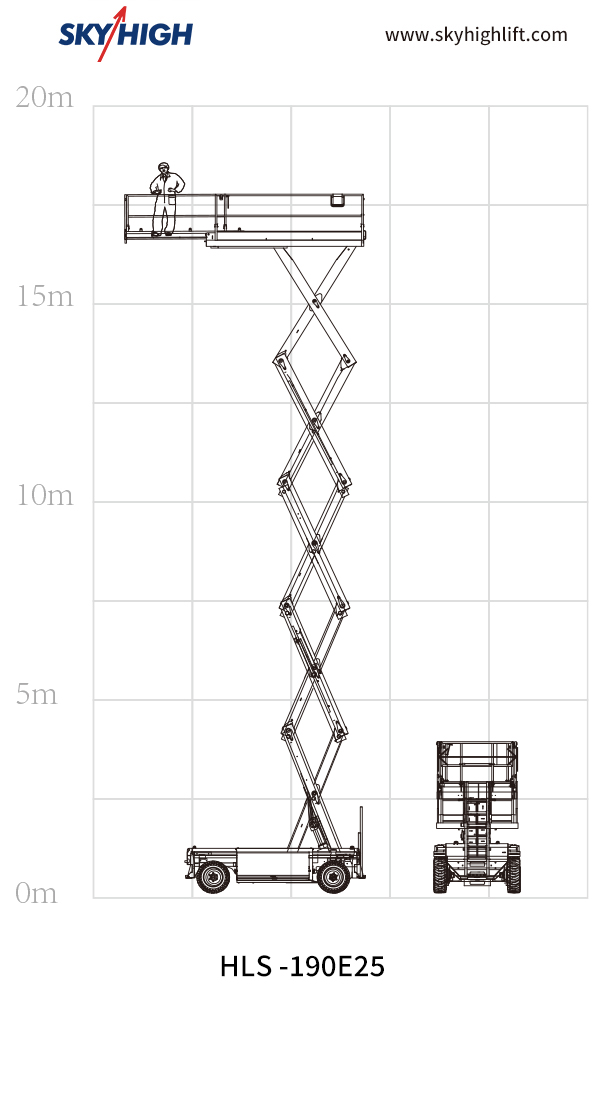

| HLS-190E25 | |
| Max. working height : | 18.70 m |
| Max. platform height : | 16.70 m |
| Min. platform height : | 2.23 m |
| Platform dimensions (retracted) : | 4.50×2.30 m |
| Platform dimensions (extended) : | 7.00×2.30 m |
| Transport height : | 3.39 m |
| Transport height (handrail folded down) : | 2.62 m |
| Transport dimensions : | 4.74×2.44 m |
| Wheel base : | 3.08 m |
| Ground clearance : | 165 mm |
| Turning radius outside : | 4.90 m |
| Max. capacity main platform : | 1000 kg (4 pers.+680 kg) |
| Max. capacity roll-out deck : | 1000 kg (4 pers.+680 kg) |
| Lift-/lower time (max. load) : | 74/70 sec. |
| Drivig speed (high) : | 2.0 km/h |
| Drivig speed (slow) : | 0.5 km/h |
| Tyres : | 33×15.5-16.5 |
| Gradeability : | 25% |
| Batteries (traction acid) | 540 Ah/k5/48 V |
| Gross weight : | 10910 kg |
