The HLS-220E25 in the series of scissor lift trucks is currently a popular and rental company's product features: "large platform, large load", platform width of 2.3 meters, load capacity of 750 kg Patented overload limit technology, can be configured with traceless tires or off-road tires.
Controlbox with quick disconnect
Hourmeter
Charger (high frequency)
230V supply on platform
Driving at full height
Driving, proportional
Lifting, proportional
Differential lock
Lubrication system Easy Lube
Scissors skirt
Drive alarm
Emergency descent
Indoors
Outdoors
Certified min. temperature -15ºC
| HLS-220E25 | |
| Max. working height : | 21.70 m |
| Max. platform height : | 19.70 m |
| Min. platform height : | 2.49 m |
| Platform dimensions (retracted) : | 4.50×2.30 m |
| Platform dimensions (extended) : | 7.00×2.30 m |
| Transport height : | 3.65 m |
| Transport height (handrail folded down) : | 2.88 m |
| Transport dimensions : | 4.74×2.44 m |
| Wheel base : | 3.08 m |
| Ground clearance : | 165 mm |
| Turning radius outside : | 4.90 m |
| Max. capacity main platform : | 750 kg (4 pers.+430 kg) |
| Max. capacity roll-out deck : | 750 kg (4 pers.+430 kg) |
| Lift-/lower time (max. load) : | 91/80 sec. |
| Drivig speed (high) : | 2.0 km/h |
| Drivig speed (slow) : | 0.5 km/h |
| Tyres : | 33×15.5-16.5 |
| Gradeability : | 25% |
| Batteries (traction acid) | 630 Ah/k5/48 V |
| Gross weight : | 11670 kg |

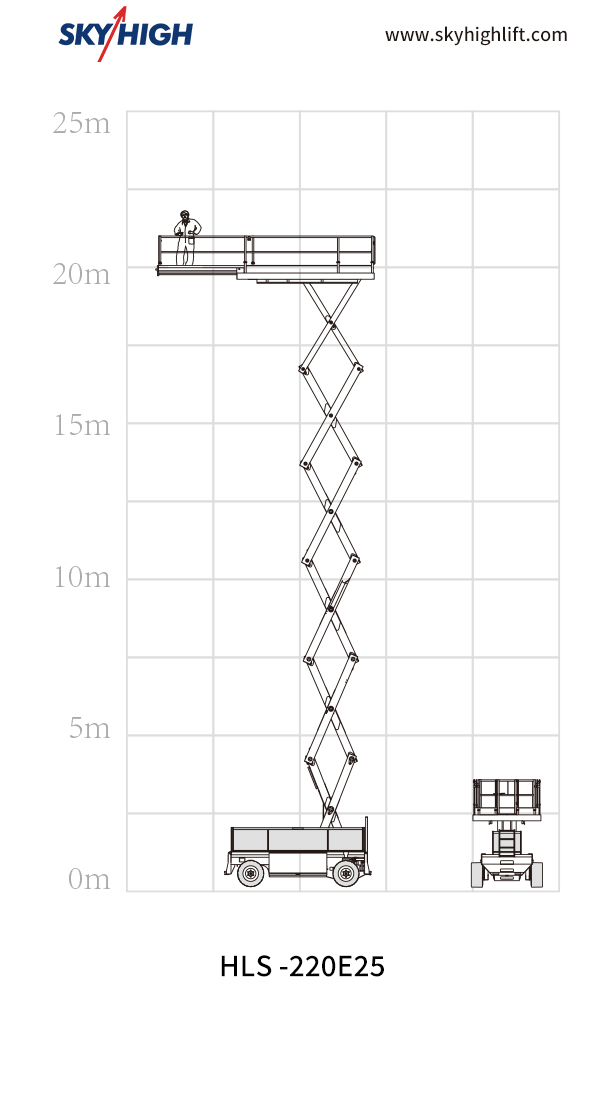

HLS-220E25
