HLS-120E20 Electric Scissor Lift provides a stable and efficient platform for working at heights. Featuring a compact design with a focus on manoeuvrability, this lift is ideal for a variety of indoor and outdoor applications.
Powered by a quiet and environmentally friendly battery, the HLS-120E20 boasts a significant working height and large platform that offers ample space for tools and materials. Its width of 2 meters allows for easy manoeuvring even in confined spaces, while the extended deck supports the same weight capacity, ensuring maximum versatility and safety.
Equipped with all-terrain, non-marking tyres, this scissor lift is suitable for use on both hard and soft surfaces, leaving no trace. This feature, combined with its heavy-duty design, makes it an excellent choice for both indoor and outdoor use.
Offering exceptional value for money, the HLS-120E20 Electric Scissor Lift is a cost-effective solution for accessing high places safely and efficiently. Whether you're working on construction sites, warehouses, or any other elevated areas, this lift will provide a reliable and stable platform to get the job done.
Controlbox with quick disconnect
Hourmeter
Charger (high frequency)
230V supply on platform
Driving at full height
Driving, proportional
Lifting, proportional
Differential lock
Descent safety
Flashing beacons
Drive alarm
Emergency descent
Indoors
Outdoors
Certified min. temperature -15ºC
HLS-120E20 | |

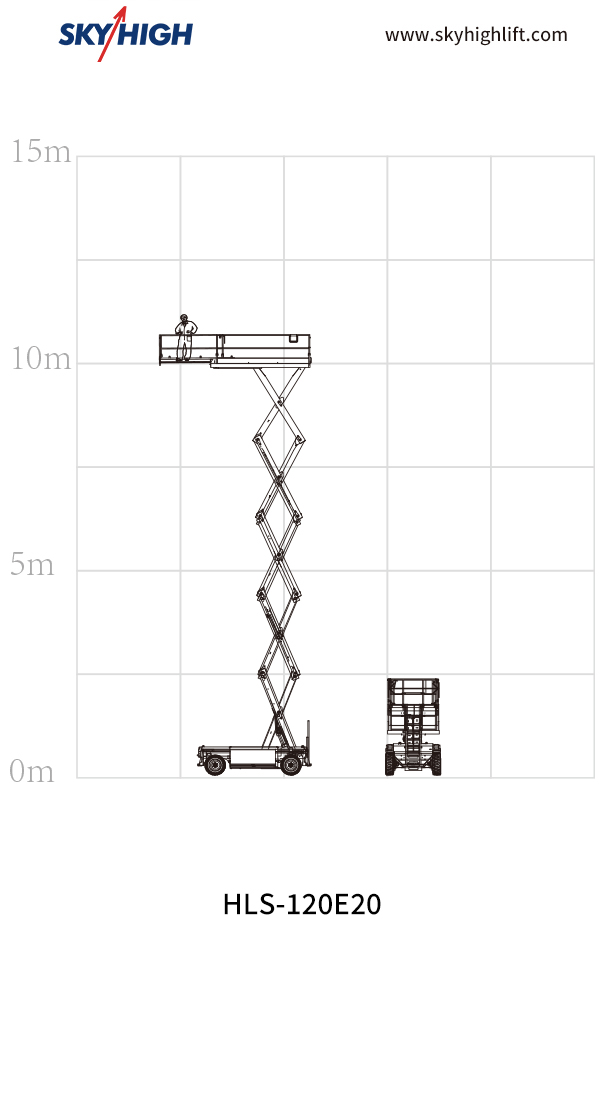

Max. working height : | 12.00 m |
Max. platform height : | 10.00 m |
Min. platform height : | 1.83 m |
Platform dimensions (retracted) : | 4.00×1.85 m |
Platform dimensions (extended) : | 6.00×1.85 m |
Transport height : | 2.99 m |
Transport height (handrail removed) : | 2.18 m |
Transport height (handrail folded down) : | 2.22 m |
Transport dimensions : | 4.50×2.0 m |
Wheel base : | 3.05 m |
Ground clearance : | 244 mm |
Turning radius outside : | 4.00 m |
Turning radius inside : | 0.00m |
Max. capacity main platform : | 1000 kg (4 pers.+680 kg) |
Max. capacity roll-out deck : | 1000 kg (4 pers.+680 kg) |
Lift-/lower time (max. load) : | 45/37 sec. |
Drivig speed (high) : | 3.6 km/h |
Drivig speed (slow) : | 0.4 km/h |
Tyres : | 33×12-20 |
Gradeability : | 25% |
Batteries (traction acid) | 420 Ah/k5/48 V |
Gross weight : | 6570 kg |
