The OTTER 130RE vertical mast boom lift is an ideal assistant for tackling the challenges of aerial work, featuring exceptional work performance and safety. Its core advantages include a maximum working height of 12.65 meters and a horizontal reach of 6.05 meters, ensuring easy access to high work points. Coupled with a powerful 30% gradeability and a zero-tail-swing design, it can maneuver flexibly even in confined spaces. The platform is equipped with a 48V 260Ah high-capacity battery and an onboard charger, supporting centralized fluid injection to meet the needs of prolonged operations, achieving long-lasting endurance and efficient work. In terms of safety and ease of operation, the platform offers a massive load capacity of 200kg and guardrails to ensure operational safety. The 352° non-continuous slew function enables precise positioning. The color LCD diagnostic console provides real-time monitoring of equipment status, while also being equipped with multiple safety devices such as a battery level indicator, tilt alarm, and overload sensor, comprehensively ensuring the operator's safety. The OTTER 130RE vertical mast boom lift is fully functional, safe, and reliable, making it your ideal choice for aerial work!
Non-marking rubber wheels
Platform with protection bar
200kg load capacity
48V 260 Ah Battery
On-board H/F charger
Centralized battery flling
Non-continuous 352° turret rotation
30% gradeability
Possible to work at maximum height
On-board diagnostic colour LCD console
Sling and tow rings
Battery charge indicator
Tilt indicator with alarm
Overload sensor
Flashing lights
Hour meter
| OTTER 130RE | |

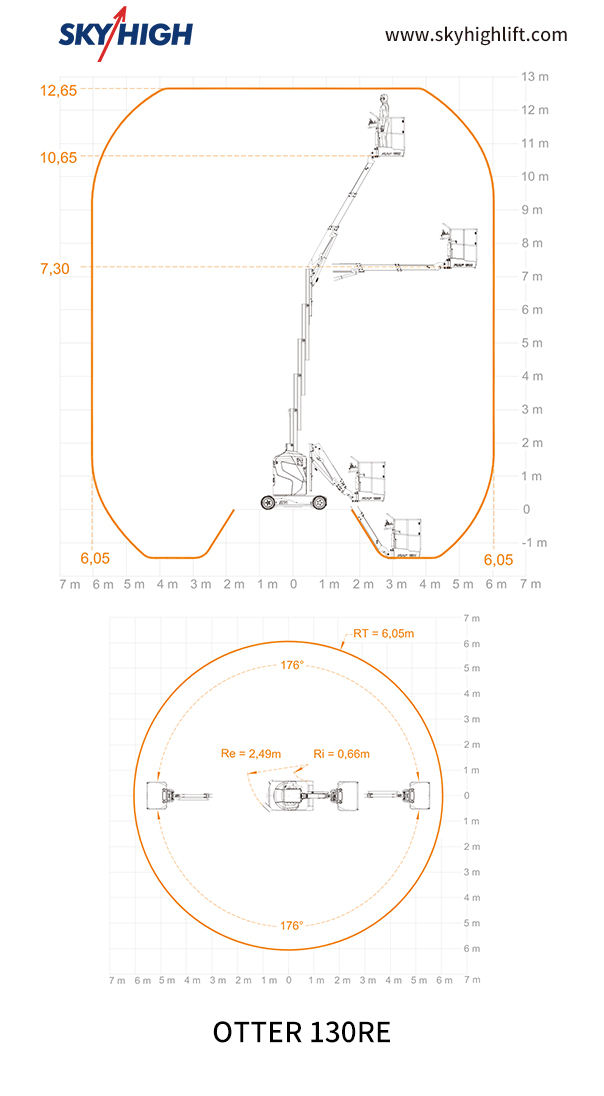

| Max. working height : | 12.65 m |
| Max. platform height : | 10.65 m |
| Max. horizontal extension : | 6.05 m |
| Length-stowed ： | 3.72 m |
| Width-stowed ： | 1.2 m |
| Height-stowed ： | 1.98 m |
| Wheelbase ： | 1.55 m |
| Platform dimensions : | 80 × 93 cm |
| Lift capacity-inside ： | 200 kg |
| Lift capacity-outside ： | 200 kg |
| Turntable rotation : | 352 ° |
| Gradeability : | 25% |
| Tilt rating ： | 2 ° |
| Drive speed-stowed ： | 4 km/h |
| Drive speed-raised ： | 0.9 km/h |
| Overall weight : | 6500 kg |
OTTER 130RE
