OTTER 110RE

PRODUCT DESCRIPTION

The OTTER 100RE mast lift stands out as a remarkable industrial equipment, primarily due to its extended horizontal reach capability, which enables access to hard-to-reach areas, significantly enhancing work efficiency and versatility.
Built with heavy-duty mechanical design, it boasts sturdy and durable construction, while its compact size facilitates manoeuvrability in confined spaces. Additionally, its user-friendly and easily maintainable design ensures longevity and reliable performance.
Equipped with a heavy-duty battery, the OTTER 100RE offers impressive endurance, minimising downtime and boosting overall productivity.
In essence, the OTTER 100RE mast lift, with its extended reach, durable design, compact size, ease of maintenance, and long-lasting battery, serves as a valuable assistant in the industrial sector.

STANDARD FEATURES

Non-marking tyre
Progressive control system
Hydraulic drive system
24V 575Ah centrally filled battery
85Ah battery charger
Three driving speeds
Lifting hole
Emergency descent manual pump
Battery protection system
Tilt warning system
Overload limiting device
Timer
High-strength, large-size working platform

DATASHEET

OTTER 110RE
Max. working height : 10.98 m
Max. platform height  : 8.98 m
Max. horizontal extension : 3.74 m
Length-stowed : 3.05 m
Width-stowed : 1.03 m
Height-stowed : 2.14 m
Wheelbase : 1.20 m
Platform dimensions : 80 × 90 cm
Lift capacity-inside : 200 kg
Lift capacity-outside : 120 kg
Turntable rotation : 220 °
Gradeability : 20%
Tilt rating : 2 °
Drive speed-stowed : 4.8 km/h
Drive speed-raised : 1.0 km/h
Max. pressure on ground : 10.4 km/cm²
Overall weight : 3200 kg

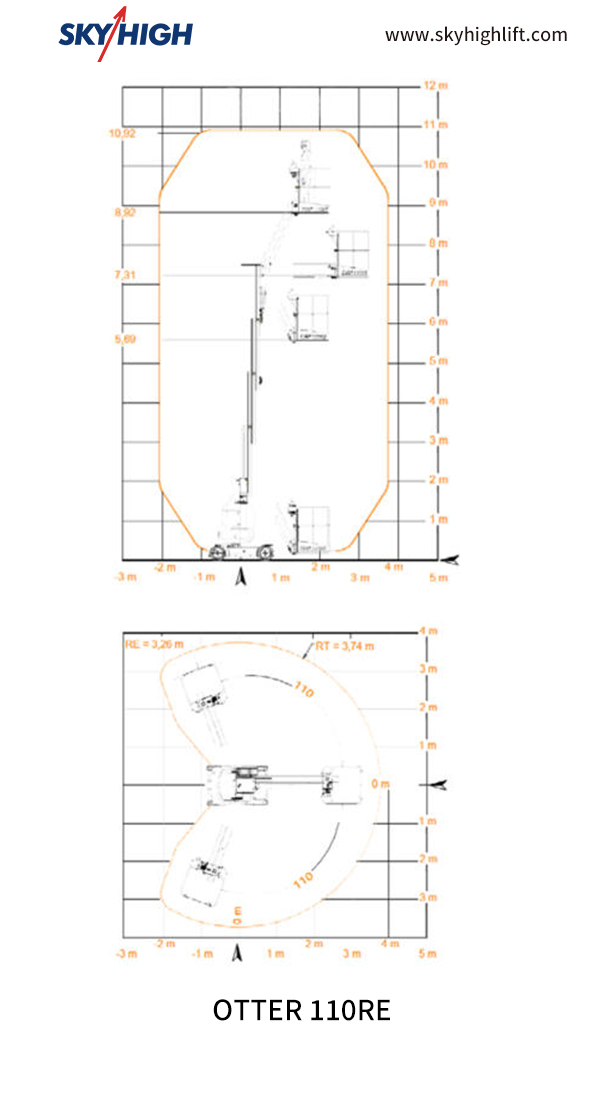

WORK DIAGRAM
