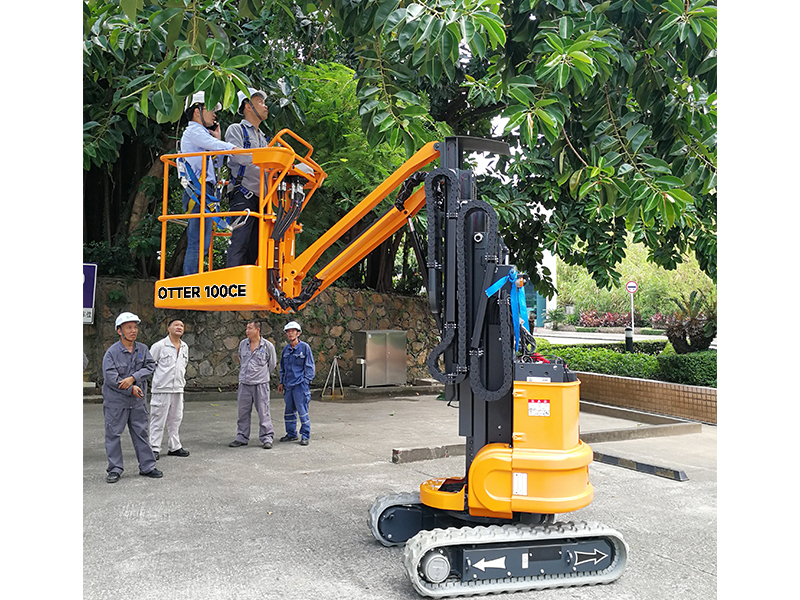

OTTER 100CE

PRODUCT DESCRIPTION

OTTER 100CE is the latest crawler mast aerial vehicle , following the classic heavy-duty chassis design of the OTTER series. This machine adopts the crawler design, which greatly reduces the pressure on the ground compared with the wheel type, so that the machine can be used on wooden floors. It can also be used easily, and the machine has a crawler design, and it can also easily cross the uneven ground in the wild. The entire machine is designed with pure hydraulic pressure, so the cleaning, maintenance and maintenance of the machine greatly reduce the work intensity of the staff. At the same time, a large-capacity battery is used as a power source, so that the machine can work for a long time. It is a valuable crawler mast aerial vehicle.

STANDARD FEATURES

  •

    • Full hydraulic drive

    • Large-capacity battery drive

    • Uses traceless tracks

    • Extend to 3.5 meters horizontally

    • Extremely low ground pressure

    • Easy maintenance



DATASHEET

OTTER 100CE
Max. working height : 10.05 m
Max. platform height  : 8.05 m
Max. horizontal extension : 3.35 m
Lift capacity-inside : 200 kg
Lift capacity-outside : 120 kg
Platform dimensions : 80 × 93 cm
Length-stowed : 2.74 m
Width : 1.20 m
Height-stowed : 2.12 m
Turning radius : 0
Wheelbase : 1.15 m
Ground clearance : 6.50 cm
Turning radius-outside : 2.16 m
Turntable rotation : 2 × 110 °
Power source : 24 V - 575 Ah
Max. gradeability - stowed : 30%
Drive speed- stowed : 1.6 km/h
Drive speed- raised : 0.9 km/h
Max. ground bearing pressure : 69 Kn/m²
Max. tilt value : 3 °
Overall weight : 2780 kg

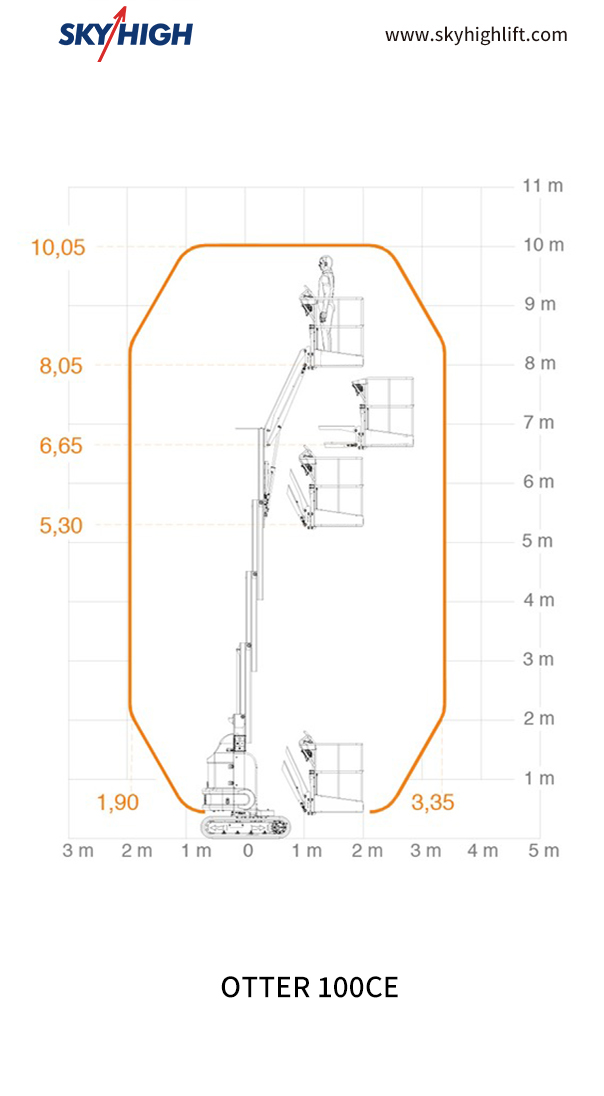

WORK DIAGRAM
