The OTTER 110CE Aerial Mast Truck is specially designed to tackle complex terrains, effortlessly handling various challenges. Its hydraulic joystick control system ensures seamless and accurate manoeuvring, significantly enhancing work efficiency. The compact structural design optimizes space utilization, making it particularly suitable for urban or confined workspaces. Additionally, the mast's remarkable flexibility allows easy adjustment to different heights and angles, accommodating a wide range of work demands. In conclusion, the OTTER 110CE serves as a versatile solution for complex aerial tasks, delivering efficient and safe performance in both narrow spaces and uneven terrains.
Full hydraulic drive
Large-capacity battery drive
Uses traceless tracks
Extend to 3.65 meters horizontally
Extremely low ground pressure
Easy maintenance
| OTTER 110CE | |

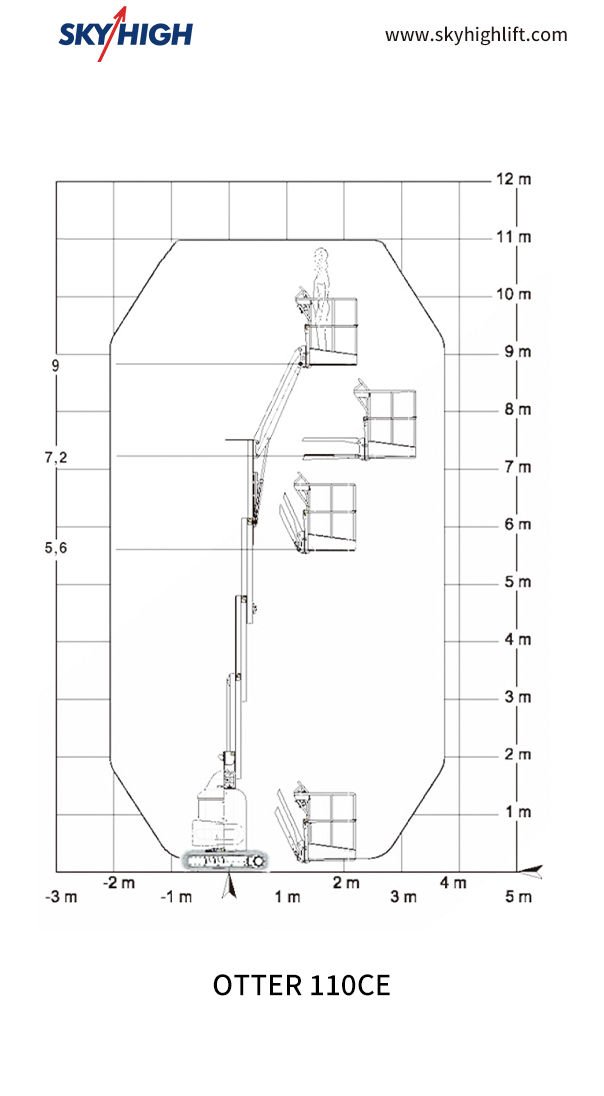

| Max. working height : | 11.00 m |
| Max. platform height : | 9.00 m |
| Max. horizontal extension : | 3.65 m |
| Up and over clearance : | 7.20 m |
| Length-stowed ： | 2.95 m |
| Width-stowed ： | 1.20 m |
| Height-stowed ： | 1.98 m |
| Wheelbase ： | 1.20 m |
| Platform dimensions : | 80 × 90 cm |
| Platform capacity ： | 200 kg |
| Turntable rotation : | 220 ° |
| Jib leight : | 2.30m |
| Jib movable : | 135 ° |
| Gradeability : | 35% |
| Turning radius-inside ： | 0 |
| Turning radius-outside ： | 1.20 m |
| Drive speed ： | 2.5 km/h |
| Tilt rating ： | 2 ° |
| Track width : | 0.23 m |
| Track length : | 1.50 m |
| Battery drive : | 24V (575Ah) |
| Control volte : | 24V |
| Hydraulic tank capacity : | 30 L |
| Overall weight : | 2960 kg |
OTTER 110CE
