OTTER 100RE

PRODUCT DESCRIPTION

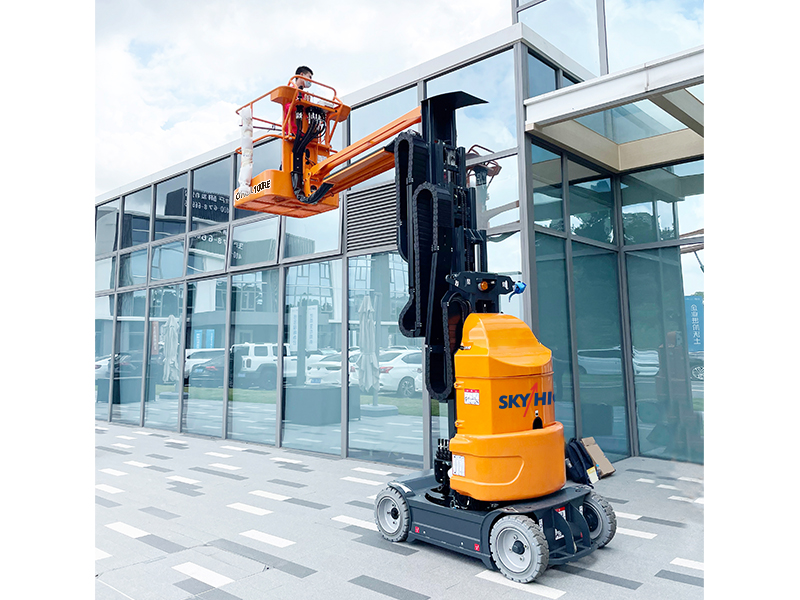

Electric mast boom lift with a working height of 10m and an indoor lift capacity of 200kg. It is very compact and equipped with a horizontal outreach of 3.74m.It is perfectly adapted for working in indoor narrow spaces and is able to operate on both fragile ground and outdoor stabilised ground.

STANDARD FEATURES

• Non-marking rubber wheels

• Progressive hydraulic movement controls

• Drive and directional movement controls carried out with

   hydraulic joystick controls

• 200kg load capacity

• 575 Ah 24 V traction battery with centralised charging

• On-board HF 85 A charger

• Two drive speeds

• 2 x 110° rotating turret

• 20% gradeabiliy

• Possible to work at maximum height

• Sling rings

• Flashing lights

• Battery charge indicator with cutoff at 80%

• Tilt indicator with alarm

• Overload sensor

• Hour meter

DATASHEET

OTTER 100RE
Max. working height : 10.92 m
Max. platform height  : 8.92 m
Max. horizontal extension : 3.74 m
Lift capacity-inside : 200 kg
Lift capacity-outside : 120 kg
Platform dimensions : 80 × 93 cm
Length-stowed : 3.05 m
Width : 1.04 m
Height-stowed : 2.14 m
Wheelbase : 1.20 m
Ground clearance : 6.50 cm
Turning radius-inside : 0.76 m
Turning radius-outside : 2.16 m
Turntable rotation : 2 × 110 °
Max. gradeability - stowed : 20%
Drive speed- stowed : 4.8 km/h
Drive speed- raised : 1.00 km/h
Max. ground bearing pressure : 1020 Kn/m²
Max. tilt value : 2 °
Overall weight : 3280 kg

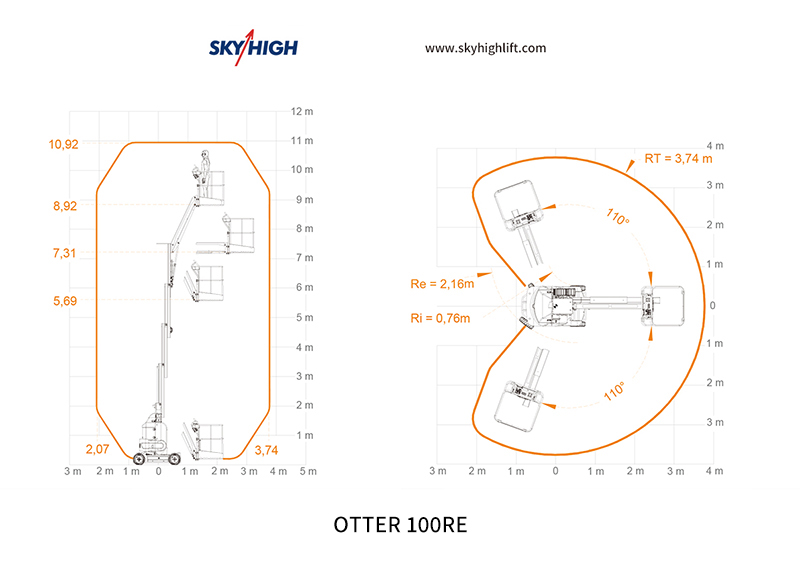

WORK DIAGRAM
