The vertical mast aerial work platform OTTER 80RE is one of the best-selling machines at the moment. Its good Most people have recognized the product's functionality and stunning design. The OTTER 80RE features a vertical single mast design with a horizontal extension of 3 meters. The machine is only 0.99 meters wide, 1.98 meters tall, and 2.66 meters long. It is ideal for usage in a compact space.
Small radian rotation design for better accessibility
3 degree tilt sensor and keyhole design increase machine safety
Positive and negative forearms make the whole body more flexible
Driving speed of 4.8 km / h
25% climbing ability
Reduced overall weight design makes transportation and use more convenient
User-friendly and special platform design
Rugged, reliable, and easy to maintain
OTTER 80RE | |

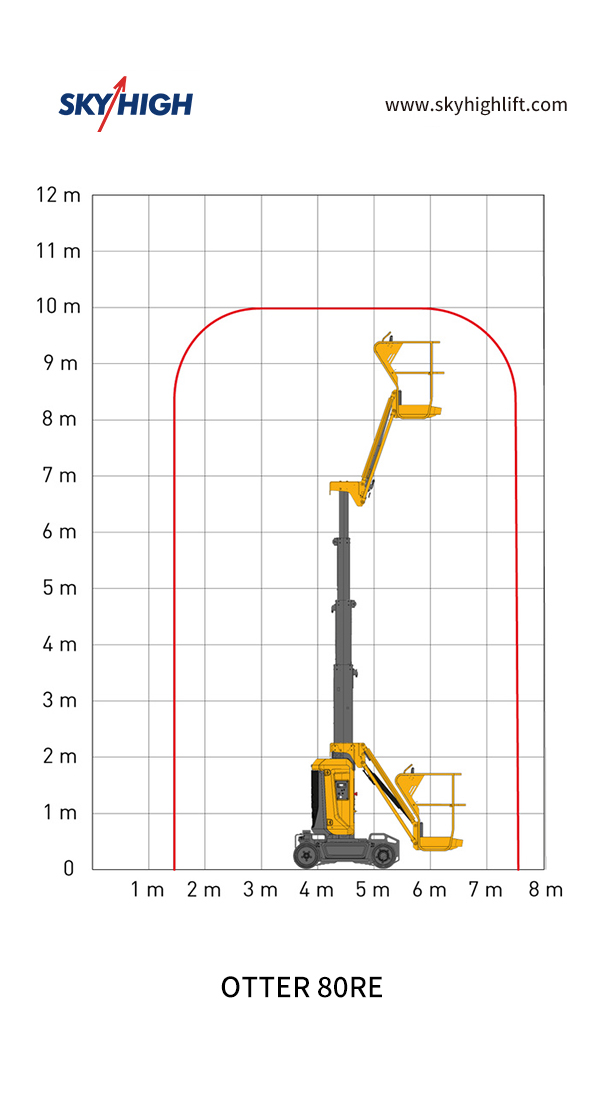

Max. working height : | 10.00 m |

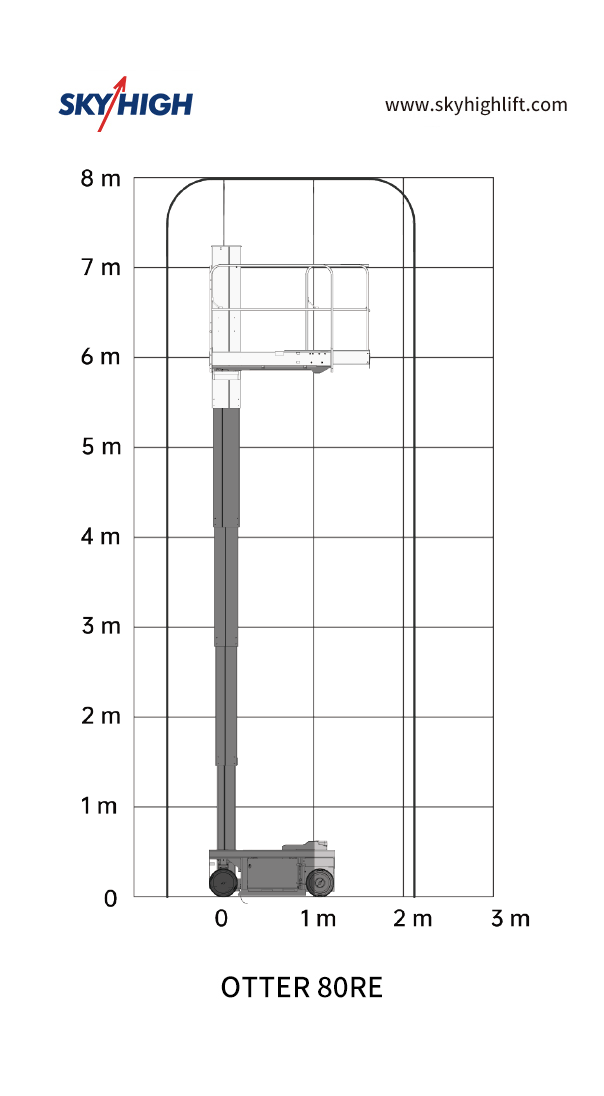

Max. platform height : | 8.00 m |
Max. horizontal extension : | 3.00 m |
Lift capacity-inside | 200 kg (2pers.) |
Lift capacity-outside | 200 kg (1pers.) |
Platform dimensions : | 78 × 98 cm |
Length | 2.7 m |
Width | 1 m |
Height-stowed | 1.99 m |
Tailswing | 0 cm |
Wheelbase | 1.20 m |
Ground clearance | 10.00 cm |
Drive speed proportional | 0.6 - 5 km/h |
Turning radius - outside | 1.88 m |
Turntable rotation : | 345° |
Tyre - non marking : | 16×5×10.5 |
Power source : | 24 V - 250 Ah |
Overall weight : | 2677 kg |
Tilt alarm : | 3 ° |
Max. gradeability: | 25% |
Driveable at full height up to | 8 m |
Vertical jib rotation | 130° (+70 ° /-60 °) |
Hydraulic system capacity | 7 I |
